Ordinary pressure gauges are local indicating pressure gauges, displaying the pressure locally without remote transmission, display, or adjustment functions. Pressure gauges include axial pressure gauges and axial pressure gauges with flanges. In industrial process control and technical measurement, ordinary pressure gauges are increasingly widely used due to their high mechanical strength of the elastic sensing element, ease of production, simple installation, and convenient reading.
- Operating temperature: -40℃～70℃;
- Vibration resistance: V·H·3 level;
- Relative humidity: not greater than 90%;
- Temperature effect: not greater than 0.4%/10℃ (operating temperature deviation 20±5℃);
- Standard: GB/T1226-2001;
| Model |
Structure |
Accuracy(％) |
Measure Range (MPa) |
|
Y-50
|
Radial without edge |
±2.5 |
-0.1～0;
-0.1～0.06;
-0.1～0.15;
-0.1～0.3;
-0.1～0.5;
-0.1～0.9
-0.1～1.5;
-0.1～2.4
|
|
Y-50T
|
Radial with rear edge |
|
Y-50Z
|
Axial without edge |
| Y-50ZQ |
Axial with front edge |
| Y-60 |
Radial without edge |
| Y-60T |
Radial without rear edge |
| Y-60Z |
Axial without edge |
| Y-60ZQ |
Axial without front edge |
| Y-75 |
Radial without edge |
| Y-75T |
Radial without rear edge |
| Y-75Z |
Axial without edge |
| Y-75ZQ |
Axial wihtout front edge |
| Y-100 |
Radial without edge |
±1.6
|
|
Y-100T
|
Radial without rear edge
|
|
Y-100Z
|
Axial wihtout edge
|
|
Y-100ZQ
|
Axial without front edge
|
|
Y-150
|
Radial without edge
|
0～0.16;
0～0.25;
0～0.4;
0～0.6;
0～1.0;
0～1.6
0～2.5;
0～4.0;
0～6.0;
0～10;
0～16;
0～25;
0～40;
0～60;
0～100
|
| Y-150T |
Radial without rear edge |
| Y-150Z |
Axial without edge |
| Y-150ZQ |
Axial without front edge |
| Remarks |
Axial structure can be customized with a square or clamp type |
|
|
| Nominal diamete |
Connector Size |
|
|
| D |
d |
L |
d1 |
| mm |
mm |
mm |
mm |
| 50 |
M14×1.5 |
14 |
5 |
| 60 |
M14×1.5 |
14 |
5 |
| 75 |
G3/8 |
14 |
5 |
| 100 |
M20×1.5 |
20 |
6 |
| 150 |
M20×1.5 |
20 |
6 |
1) The working pressure should ideally be 1/3 to 2/3 of the full scale, and the maximum operating range should not exceed 3/4 of the full scale.
2) The calibration cycle should generally not exceed six months. For applications involving large fluctuations in the medium being measured, frequent use, high accuracy requirements, or stringent safety requirements, the calibration cycle may be appropriately shortened depending on the specific circumstances.
3) The working environment should be free of corrosive gases.
Ordinary pressure gauges are suitable for measuring the pressure and vacuum of liquids, gases, or vapors that are non-explosive, non-crystallizing, non-solidifying, and non-corrosive to copper and copper alloys.
|
|

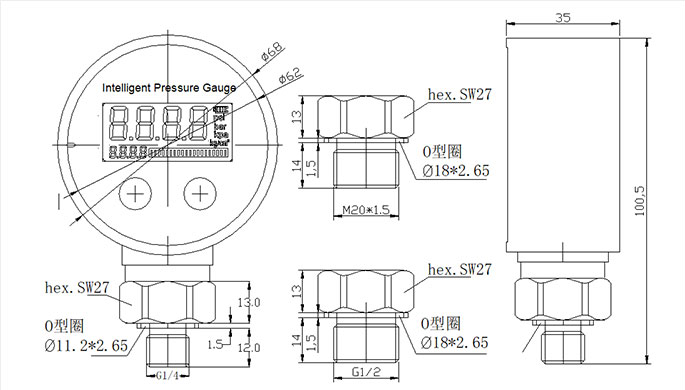

2 Inch 50mm Axial Direction Pressure Gauge Images
|
